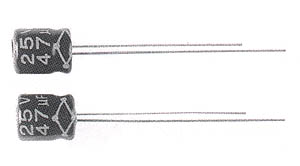

MR series Miniaturized 7mm height   超小型品

l  本體之高度縮短至7 mm,適用於輕薄小型化之電子產品。
l  適用於高密度電子設備,例如:OA機器、電子計算機、
     汽車音響、迷你音響、攝影機、光碟機、手提電腦••等等。

l
Developed short body length to 7m/m,for the demand
    of smaller and thinner electronic equipment.
l Most suitable for high-density electronic equipment,
   such as:automatic office machines, pocket calculators,
   car stereos and mini-audio sets,
VCR, camera, CD-ROM,
   notebook , etc.




specifications

No.

Item

Performance



1


使用溫度範圍
Operating Temperature Range



-40 to+105º c


2


定格電壓範圍
Rated Working Voltage Range


6.3 - 63v.DC


3


靜電容量範圍
Nominal Capacitance Range


0.1 - 470µ F


4


靜電容量容許差
Capacitance Tolerance


±
20% (at+20º c ,120Hz)


5


漏洩電流
Leakage Current


I = 0.01CV or 3(µ A) after two minutes



6


損失角
Dissipation Factor(tan
)
(120Hz\+20º c)



Working Voltage(V) 6.3 10 16 25 35 50 63
tan      max 0.24 0.20 0.16 0.14 0.12 0.10 0.08






7



溫度特性(at 120 Hz)
Characteristics at
low temperature
(stability at 120 Hz)



Working Voltage(V)

6.3 10 16 25 35 50 63

-25º c/+20º c

4 3 2 2 2 2 2

-40º c/+20º c

8 6 4 4 3 3 3







8





高溫負荷特性
High Temperature Loading


     After 1000hrs. application of DC rated working voltage at +85ºc,
     The capacitor shall meet the following limits :
     Post test requirements at +20ºc
Leakage current £ the   initial specified value
Capacitance change £ ±20% of  initial measured value
Dissipation Factor(tan) £200% of  initial specified value



9



高溫無負荷特性
Shelf Life


   After storage for 500hrs. at +85º C with no voltage applied.
   Post test requirements at +20º C
   same limits as high temperature loading.



10



耐洗淨性
Solvent proof


   This capacitor can withstand circuit-board cleaning within 5 min.
   dipped in Freon TE,TES, at 40º C (ultrasonic also permitted)
   or in the steam of these cleaners.



MR series Miniaturized 7mm height   超小型品

Diagram of Dimensions



Case Size Table                                                                                        øD x L(mm)

     W.V. (SV)

µ F

6.3

(8)

10

(13)

16

(20)

25

(32)

35

(44)

50

(63)

63

(79)

0.1

--- --- --- ---

®

4 X 7

4 X 7

0.22

--- --- ---

---

®

4 X 7

4 X 7

0.33

--- --- --- ---

®

4 X 7

4 X 7

0.47

--- --- --- ---

®

4 X 7

4 X 7

1.0

--- --- --- ---

®

4 X 7

4 X 7

2.2

--- --- --- ---

®

4 X 7

4 X 7

3.3

--- --- --- ---

®

4 X 7

4 X 7

4.7

--- --- --- ---

®

4 X 7

5 X 7

10

---

---

®

4 X 7

4 X 7

5 X 7

6.3 X 7

22

---

®

4 X 7

5 X 7

5 X 7

6.3 X 7

---

33

®

4 X 7

5 X 7

5 X 7

6.3 X 7

8 X 7 (8 X 9)

---

47

®

4 X 7

5 X 7

6.3 X 7

6.3 X 7

8 X 7 (8 X 9)

---

100

®

5 X 7

6.3 X 7

8 X 7 (8 X 9)

8 X 7 (8 X 9)

--- ---

220

®

6.3 X 7

8 X 7 (8 X 9)

--- --- --- ---

330

®

8 X 7 (8 X 9)

8 X 7 (8 X 9)

--- --- --- ---

470

8 X 7 (8 X 9)

8 X 9

8 X 9

--- --- --- ---

l All blank voltage on sleeve marking is the same voltage as “ ® ” point to.
l 空格部分膠管所標示的電壓以“ ® ”右方一格表示
