BP series Bi-Polarized high ripple 無極性高紋波品

l BP series是特別設計來適用於極性反轉回路，且應用於開關
     變動時能保持高度穩定性。
l BP series bi-polar, capacitors are specially designed for
    the circuits where the polarity is temporarily reversed
    or unknown, and also the reversed voltage is applied
    when a switch is on or off. They show stable functions
    in these circuits.

p44 ERC.jpg (16022 bytes)

specifications

No.

Item

Performance

使用溫度範圍
Operating Temperature
Range

-40 to+105º c

定格電壓範圍
Rated Working Voltage
Range

6.3 - 100v.DC

靜電容量範圍
Nominal Capacitance
Range

0.47 - 6800µ F

靜電容量容許差
Capacitance Tolerance

± 20%(at+20º c ,120Hz)

漏洩電流
Leakage Current

l = 0.03CV or 3(µA) after five minutes

損失角
Dissipation Factor
(tan)
(120Hz\+20º c)

Working Voltage(V) 6.3 10 16 25 35 50 63 100

tan max 0.24 0.20 0.17 0.15 0.14 0.12 0.12 0.10

Add 0.02 per 1000µ F for more than 1000µ F items.

溫度特性(at 120 Hz)
Characteristics at
low temperature
(stability at 120 Hz)

Working Voltage(V)
6.3 10 16 25 35 50 63 100

-25º c/+20º c
4 3 2 2 2 2 2 2

-40º c/+20º c
10 8 6 5 4 4 3 3

高溫負荷特性
High Temperature
Loading

    After 2000hrs. application of DC rated working voltage at +105º C,
    The capacitor shall meet the following limits:
    Post test requirements at +20º C

Leakage current £ the initial specified value

Capacitance change £ ±20% of initial measured value

Dissipation Factor(tan) £150% of initial specified value

高溫無負荷特性
Shelf Life

   After storage for 500hrs. at +105º C with no voltage applied.
   Post test requirements at +20º C
   same limits as high temperature loading.

　

BP series Bi-Polarized high ripple 無極性高紋波品

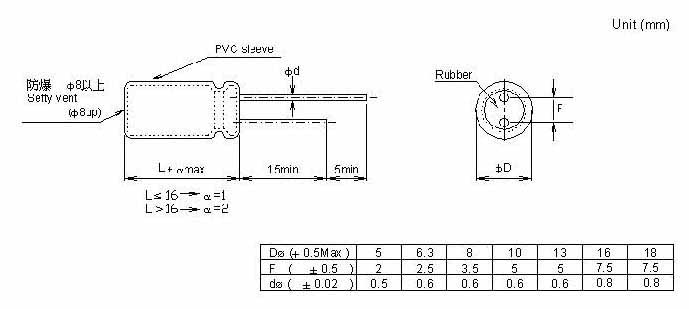

Diagram of Dimensions

Case Size Table øD x L(mm)

W.V.(SV) µ F	6.3 (8)	10 (13)	16 (20)	25 (32)	35 (44)	50 (63)	63 (79)	100 (125)
0.47	---	---	---	---	---	5 X 11	---	5 X 11
1.0	---	---	---	---	---	5 X 11	---	5 X 11
2.2	---	---	---	---	---	5 X 11	5 X 11	6.3 X 11
3.3	---	---	---	---	---	5 X 11	5 X 11	6.3 X 11
4.7	---	---	---	5 X 11	5 X 11	5 X 11	6.3 X 11	6.3 X 11
10	---	---	5 X 11	5 X 11	5 X 11	6.3 X 11	6.3 X 11	8 X 11
22	---	5 X 11	5 X 11	6.3 X 11	6.3 X 11	8 X 11	8 X 11	10 X 16
33	5 X 11	5 X 11	5 X 11	6.3 X 11	8 X 11	8 X 11	10 X 13	13 X 21
47	5 X 11	5 X 11	6.3 X 11	6.3 X 11	8 X 11	10 X 13	10 X 16	13 X 21
100	6.3 X 11	6.3 X 11	8 X 11	8 X 11	10 X 16	10 X 21	13 X 21	16 X 26
220	8 X 11	8 X 11	10 X 13	10 X 16	13 X 21	13 X 26	16 X 26	18 X 36
330	8 X 11	10 X 16	10 X 16	13 X 21	13 X 21	16 X 26	16 X 32	---
470	10 X 13	10 X 16	10 X 21	13 X 21	13 X 26	16 X 32	18 X 36	---
1,000	10 X 21	13 X 21	13 X 26	16 X 26	16 X 32	---	---	---
2,200	13 X 26	16 X 26	16 X 32	18 X 36	---	---	---	---
3,300	16 X 26	16 X 32	18 X 36	---	---	---	---	---
4,700	16 X 32	18 X 36	---	---	---	---	---	---
6,800	18 X 36	---	---	---	---	---	---	---
