N10R series Radial Type Non-Polarized
                                    無極性立式標準品

l 適用於極性反轉回路,例如:信號交連或HI-FI高級音響設備如
     喇叭、分音器等。
l 具容量誤差小,頻率響應高之特質。

l N10R series capacitors are suitable for crossover network,
    HI-FI audio equipment, speakers, and etc.
l With excellent frequency characteristic and small deviation
    of capacitance.



                       p44 ERC.jpg (16022 bytes)
specifications

No.

Item

Performance



1


   使用溫度範圍
Operating
Temperature Range



-40 to+85º c



2


額定電壓範圍
Rated Working
Voltage Range



25
100v.DC



3


靜電容量範圍
Nominal Capacitance
Range



0.47
1000µF



4


靜電容量容許差
Capacitance Tolerance



±
2.5%(H)   ± 5%(J)    ± 10%(K) ± 20%(M)         (at+20°c,120Hz)


5


漏洩電流
Leakage Current


I
£ 0.04CV + 3(µ A) after charge five minutes



6


損失角
Dissipation Factor
(tan)
(120Hz\+20ºc)



Working Voltage (V) 25 50 100
  tan      max 0.15 0.10 0.10








7






高溫負荷特性
High Temperature
Loading



   After 2000hrs. application of DC rated working voltage at +85ºc,
   Post test requirements at +20º c ~ +25º c
   The capacitor shall meet the following limits:

  Leakage current £ the   initial specified value
  Capacitance change £ ± 20% of  initial measured value
  Dissipation Factor(tan) £150% of  initial specified value





8



高溫無負荷特性
Shelf Life


   After storage for 500hrs. at +85º c with no voltage applied.
   Post test requirements at +20º c ~ +25º c
   Same limits as high temperature loading.


N10R series Radial Type Non-Polarized     無極性立式標準品

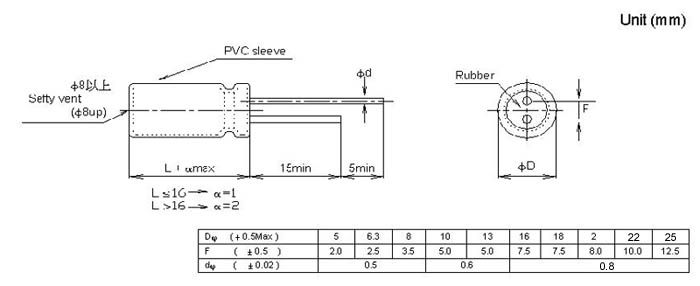

Diagram of Dimensions



Case Size Table                                                                                  øD x L(mm)

          W.V. (SV)

µ F

25

(32)

50

(63)

100

(125)

0.47

5 X 11

5 X 11

6.3 X 11

1.0

5 X 11

5 X 11

6.3 X 11

1.5

5 X 11

5 X 11

6.3 X 11

2.2

5 X 11

5 X 11

6.3 X 11

2.7

5 X 11

5 X 11

6.3 X 11

3.3

5 X 11

5 X 11

8 X 11

4.7

5 X 11

6.3 X 11

8 X 11

5.6

5 X 11

6.3 X 11

8 X 11

6.8

5 X 11

6.3 X 11

8 X 15

8.2

6.3 X 11

8 X 15

10 X 16

10

6.3 X 11

8 X 15

10 X 16

15

6.3 X 11

8 X 15

10 X 20

22

8 X 11

8 X 15

10 X 20

33

8 X 11

10 X 16

13 X 21

47

8 X 15

10 X 16

13 X 21

68

8 X 15

10 X 20

13 X 26

75

10 X 15

10 X 20

13 X 26

82

10 X 15

10 X 20

13 X 26

100

10 X 15

10 X 20

16 X 27

120

10 X 15

10 X 20

16 X 27

150

10 X 20

13 X 21

16 X 36

220

10 X 20

13 X 26

18 X 36

270

10 X 20

13 X 26

18 X 36

330

13 X 21

16 X 27

22 X 37

390

13 X 26

16 X 27

22 X 37

470

13 X 26

16 X 36

25 X 45

560

13 X 26

16 X 36

25 X 45

680

16 X 27

18 X 36

25 X 49

750

16 X 27

22 X 37

25 X 49

820

16 X 27

22 X 37

25 X 49

1000

16 X 27

22 X 37

25 X 53

  • The above table for standard value .
  • Any special value are acceptable, Its size to be provided upon requested.
