MET series Axial Tubular Type 臥式金屬膜標準品

l 多元脂原料捲繞,兩端環氧樹脂封裝,具體積小、無感,
 穩定性佳,有自我修補之特性,適用於連接器、旁路電
 容、高頻濾波、HI-FI高級音響設備如喇叭、分音器等,
 尤其有體積限制之產品。
l 具容量誤差小,頻率響應高之特質。

l MET series capacitors are made of polyester wrapping with
   epoxy resin end fill.
l With high stability ,non-inductive, miniature size and self-
    healing characteristics.
l With excellent frequency characteristic and small deviation
    of capacitance, specially good for R. F. Filtering, By-pass,
HI-FI audio equipment,speaker,cross-over and etc. Also
    good for solid-state application where size is critical.



             p44 ERC.jpg (16022 bytes)
specifications

No.

Item

Performance



1


   使用溫度範圍
Operating
 Temperature Range



-40 to+85ºc



2


額定電壓範圍
Rated Working
Voltage Range



100
630v.DC



3


靜電容量範圍
Nominal Capacitance
Range



0.01
10µ F



4


靜電容量容許差


Capacitance
    Tolerance



± 5%(J)    ± 10%(K)
± 20%(M)         (at+20°c ,1KHz)



5


絕緣阻抗
Insulation Resistance



IR£ 10,000MW (at+25° c)



6



損失角
Dissipation Factor
(tan)
(1kHz\+25ºc)



£
0.01






7





高溫負荷特性
High Temperature
Loading


   After 1000hrs. adding 140% DC rated working voltage at +85º c,
   Post test requirements at +20º c ~ +25º c
   The capacitor shall meet the following limits:

  Insulation Resistance ³ 10% of  initial value
  Capacitance change Drift with ±5% of   initial value
  Dissipation Factor(tan) £1.1% of  initial value








8





濕度測試
Humidity Load Life
Test


   After 500hrs, application of DC rated working voltage.
   At temperature +60° c and humidity 90~ 95%.
   Post test requirements at +20° c~ +25° c.
   The capacitors shall meet the following limits:

  Insulation Resistance ³ 30% of   initial value
  Capacitance change Drift with ±8% of   initial value
  Dissipation Factor(tan) £1.1% of  initial value




MET series Axial Tubular Type 臥式金屬膜標準品

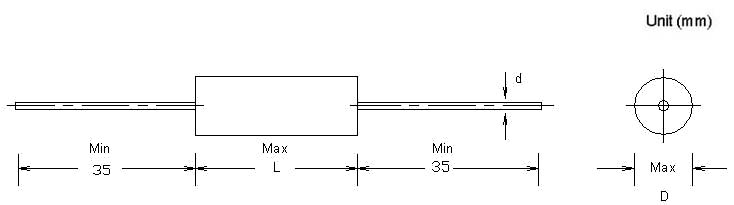

Diagram of Dimensions



Case Size Table                                                                                   (mm)

Capacitance

2A(100VDC)

2E(250VDC)

2G(400VDC)

2J(630VDC)

Symbol

m F

L

D

d

L

D

d

L

D

d

L

D

d

103

0.01

---

---

---

---

---

---

16.0

6.0

0.6

16.0

6.0

0.6

153

0.015

--- --- --- --- --- ---

16.0

6.0

0.6

16.0

7.0

0.6

223

0.022

--- --- --- --- --- ---

16.0

8.0

0.6

16.0

8.0

0.6

333

0.033

--- --- --- --- --- ---

16.0

6.5

0.6

16.0

9.0

0.6

473

0.047

--- --- ---

16.0

6.0

0.6

16.0

7.0

0.6

21.0

8.0

0.6

683

0.068

--- --- ---

16.0

6.0

0.6

16.0

9.5

0.6

21.0

9.0

0.6

104

0.1

16.0

6.0

0.6

16.0

7.0

0.6

21.0

8.0

0.6

21.0

10.0

0.8

154

0.15

16.0

6.0

0.6

16.0

7.5

0.6

21.0

8.0

0.6

26.0

11.0

0.8

224

0.22

16.0

7.0

0.6

21.0

8.0

0.6

21.0

9.0

0.8

26.0

13.0

0.8

334

0.33

21.0

7.0

0.6

21.0

8.5

0.6

26.0

10.0

0.8

26.0

14.0

0.8

474

0.47

21.0

7.5

0.6

21.0

9.5

0.8

26.0

12.0

0.8

31.0

15.0

0.8

684

0.68

21.0

8.5

0.6

26.0

9.0

0.8

26.0

12.5

0.8

31.0

18.0

0.8

105

1.0

21.0

10.0

0.8

26.0

11.0

0.8

31.0

15.0

0.8

31.0

20.5

0.8

155

1.5

26.0

10.5

0.8

26.0

12.0

0.8

31.0

18.0

0.8

--- --- ---

225

2.2

26.0

11.0

0.8

31.0

13.5

0.8

--- --- --- --- --- ---

335

3.3

26.0

14.0

0.8

31.0

16.5

0.8

--- --- --- --- --- ---

475

4.7

31.0

15.0

0.8

--- --- --- --- --- --- --- --- ---

685

6.8

31.0

17.5

0.8

--- --- --- --- --- --- --- --- ---

106

10

31.0

20.5

0.8

--- --- --- --- --- --- --- --- ---

lThe above table for standard value .
lAny special value are acceptable, Its size to be provided upon requested.


MET series Axial Tubular Type 臥式金屬膜標準品

Impedance characteristics



Frequency characteristics



Temperature dependence
